同軸斜齒輪減速機電機
網站首頁 > BOSERL減速機 > 同軸斜齒輪減速機廠家 > R系列減速機廠家

R27DV71S4詳細信息

prevnext

R27DV71S4

訂購熱線：13360667204
  1. 詳細信息

關鍵詞：輸出轉數76.5圈/分鐘減速機電機_R27DV71S4_R27DRN71S4_輸出轉數76.5圈一分鐘減速電機_一分鐘轉76.5圈齒輪減速箱馬達_一分鐘轉76.5圈減速器_一分鐘轉76.5圈電機減速機

R27DV71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
R27DV71S484.780.25KW15.0rpm156N.m15.5kg4100N0.85
R27DV71S474.110.25KW18.0rpm136N.m15.5kg4210N0.95
R27DV71S469.470.25KW19.0rpm128N.m15.5kg4240N1.00
R27DV71S461.300.25KW21.0rpm113N.m15.5kg4180N1.15
R27DV71S455.870.25KW23.0rpm103N.m15.5kg4090N1.25
R27DV71S448.170.25KW27.0rpm88N.m15.5kg3940N1.45
R27DV71S444.900.25KW29.0rpm82N.m15.5kg3870N1.60
R27DV71S439.250.25KW33.0rpm72N.m15.5kg3730N1.80
R27DV71S436.790.25KW35.0rpm68N.m15.5kg3660N1.90
R27DV71S432.470.25KW40.0rpm60N.m15.5kg3540N2.20
R27DV71S428.780.25KW45.0rpm53N.m15.5kg3420N2.50
R27DV71S424.470.25KW53.0rpm45N.m15.5kg3270N2.90
R27DV71S428.370.25KW46.0rpm52N.m15.5kg3410N2.50
R27DV71S426.090.25KW50.0rpm48N.m15.5kg3330N2.70
R27DV71S422.320.25KW58.0rpm41N.m15.5kg3180N3.20
R27DV71S419.350.25KW67.0rpm36N.m15.5kg3050N3.70
R27DV71S418.080.25KW72.0rpm33N.m15.5kg2990N3.90
R27DV71S415.630.25KW83.0rpm29N.m15.5kg2860N4.50
R27DV71S413.280.25KW98.0rpm24N.m15.5kg2730N5.30
R27DV71S411.860.25KW110rpm22N.m15.5kg2630N5.90
R27DV71S410.130.25KW128rpm19N.m15.5kg2510N6.60
R27DV71S49.410.25KW138rpm17N.m15.5kg2440N7.00
R27DV71S48.160.25KW159rpm15N.m15.5kg2330N7.70
R27DV71S47.630.25KW170rpm14N.m15.5kg2280N8.00
R27DV71S46.590.25KW197rpm12N.m15.5kg2180N8.80
R27DV71S45.600.25KW232rpm10N.m15.5kg2080N9.60
R27DV71S45.000.25KW260rpm9.2N.m15.5kg2000N10.0
R27DV71S44.270.25KW304rpm7.8N.m15.5kg1900N11.0
R27DV71S44.000.25KW325rpm7.3N.m15.5kg1870N12.0
R27DV71S43.370.25KW386rpm6.2N.m15.5kg1770N13.0

R27DRN71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
R27DRN71S484.780.25KW15.0rpm156N.m15.5kg4100N0.85
R27DRN71S474.110.25KW18.0rpm136N.m15.5kg4210N0.95
R27DRN71S469.470.25KW19.0rpm128N.m15.5kg4240N1.00
R27DRN71S461.300.25KW21.0rpm113N.m15.5kg4180N1.15
R27DRN71S455.870.25KW23.0rpm103N.m15.5kg4090N1.25
R27DRN71S448.170.25KW27.0rpm88N.m15.5kg3940N1.45
R27DRN71S444.900.25KW29.0rpm82N.m15.5kg3870N1.60
R27DRN71S439.250.25KW33.0rpm72N.m15.5kg3730N1.80
R27DRN71S436.790.25KW35.0rpm68N.m15.5kg3660N1.90
R27DRN71S432.470.25KW40.0rpm60N.m15.5kg3540N2.20
R27DRN71S428.780.25KW45.0rpm53N.m15.5kg3420N2.50
R27DRN71S424.470.25KW53.0rpm45N.m15.5kg3270N2.90
R27DRN71S428.370.25KW46.0rpm52N.m15.5kg3410N2.50
R27DRN71S426.090.25KW50.0rpm48N.m15.5kg3330N2.70
R27DRN71S422.320.25KW58.0rpm41N.m15.5kg3180N3.20
R27DRN71S419.350.25KW67.0rpm36N.m15.5kg3050N3.70
R27DRN71S418.080.25KW72.0rpm33N.m15.5kg2990N3.90
R27DRN71S415.630.25KW83.0rpm29N.m15.5kg2860N4.50
R27DRN71S413.280.25KW98.0rpm24N.m15.5kg2730N5.30
R27DRN71S411.860.25KW110rpm22N.m15.5kg2630N5.90
R27DRN71S410.130.25KW128rpm19N.m15.5kg2510N6.60
R27DRN71S49.410.25KW138rpm17N.m15.5kg2440N7.00
R27DRN71S48.160.25KW159rpm15N.m15.5kg2330N7.70
R27DRN71S47.630.25KW170rpm14N.m15.5kg2280N8.00
R27DRN71S46.590.25KW197rpm12N.m15.5kg2180N8.80
R27DRN71S45.600.25KW232rpm10N.m15.5kg2080N9.60
R27DRN71S45.000.25KW260rpm9.2N.m15.5kg2000N10.0
R27DRN71S44.270.25KW304rpm7.8N.m15.5kg1900N11.0
R27DRN71S44.000.25KW325rpm7.3N.m15.5kg1870N12.0
R27DRN71S43.370.25KW386rpm6.2N.m15.5kg1770N13.0

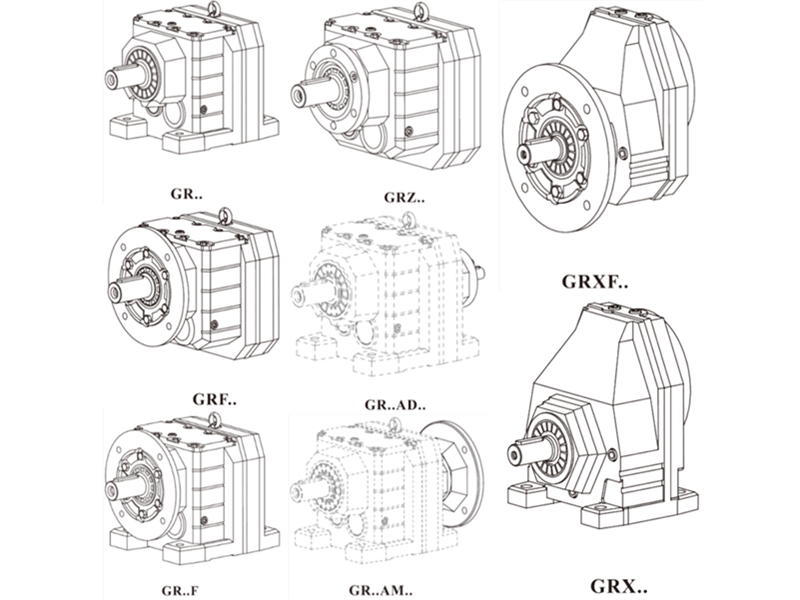

R27DV71S4齒輪減速機馬達類型：

RX..DR..單級底腳安裝斜齒輪減速電機

RXF..DR..單級B5法蘭安裝斜齒輪減速機電機

R..DR..底腳安裝斜齒輪減速電機

R..F DR..底腳、B5法蘭安裝斜齒輪減速電機

RF..DR..B5法蘭安裝斜齒輪減速電機

RZ..DR..B14法蘭安裝斜齒輪減速電機


R27DV71S4齒輪減速機馬達安裝尺寸圖紙


R27DV71S4齒輪減速機馬達生產工廠展示：看廠請提前三天預約

R系列減速機應用案例展示：

關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家

R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機

R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


標簽:   輸出轉數76.5圈/分鐘減速機電機 R27DV71S4 R27DRN71S4 輸出轉數76.5圈一分鐘減速電機 一分鐘轉76.5圈齒輪減速箱馬達 一分鐘轉76.5圈減速器 一分鐘轉76.5圈電機減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
R27DV71S4減速機樣本 點擊下載
R27DV71S4減速機三維圖紙 點擊下載
