傘齒輪斜齒輪減速機電機
網站首頁 > BOSERL減速機 > 傘齒輪斜齒輪減速機廠家 > KF系列減速機廠家

KF37DRS71S4詳細信息

prevnext

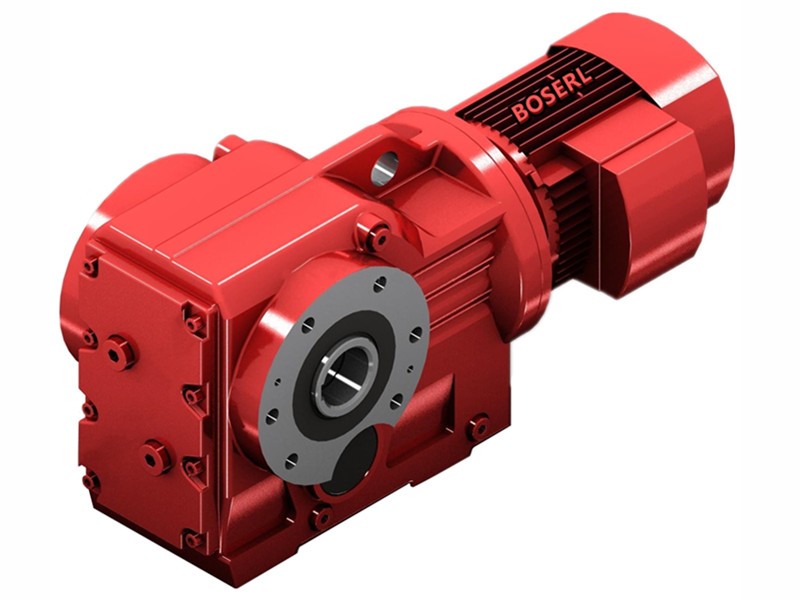

KF37DRS71S4

訂購熱線：13360667204
  1. 詳細信息

關鍵詞：旋轉6噸負載電機減速機_KF37DRS71S4_KF37DR71S4

KF37DRS71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
KF37DRS71S497.810.37kw14rpm250N.m19kg2520N0.8
KF37DRS71S483.690.37kw16rpm210N.m19kg5470N0.95
KF37DRS71S472.540.37kw19rpm186N.m19kg5690N1.1
KF37DRS71S467.80.37kw20rpm174N.m19kg5630N1.15
KF37DRS71S458.60.37kw24rpm150N.m19kg5500N1.35
KF37DRS71S449.790.37kw28rpm128N.m19kg5350N1.55
KF37DRS71S444.460.37kw31rpm114N.m19kg5230N1.75
KF37DRS71S437.970.37kw36rpm97N.m19kg5060N2.1
KF37DRS71S435.570.37kw39rpm91N.m19kg4990N2.2
KF37DRS71S429.960.37kw46rpm77N.m19kg4800N2.6
KF37DRS71S428.830.37kw48rpm74N.m19kg4750N2.7
KF37DRS71S424.990.37kw55rpm64N.m19kg4590N3.1
KF37DRS71S423.360.37kw59rpm60N.m19kg4510N3.3
KF37DRS71S420.190.37kw68rpm52N.m19kg4350N3.6
KF37DRS71S417.150.37kw80rpm44N.m19kg4160N4.1
KF37DRS71S415.310.37kw90rpm39N.m19kg4040N4.5
KF37DRS71S413.080.37kw105rpm34N.m19kg3860N4.9
KF37DRS71S412.140.37kw114rpm31N.m19kg3780N5.1
KF37DRS71S410.490.37kw132rpm27N.m19kg3630N6
KF37DRS71S48.910.37kw155rpm23N.m19kg3460N7
KF37DRS71S47.96
0.37kw173rpm20N.m19kg3350N7.6
KF37DRS71S46.8
0.37kw203rpm17N.m19kg3190N8.6
KF37DRS71S46.370.37kw217rpm16N.m19kg3130N8.9
KF37DRS71S45.360.37kw257rpm14N.m19kg2970N10

KF37DR71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
KF37DR71S497.810.37kw14rpm250N.m19kg2520N0.8
KF37DR71S483.690.37kw16rpm210N.m19kg5470N0.95
KF37DR71S4
72.540.37kw19rpm186N.m19kg5690N1.1
KF37DR71S467.80.37kw20rpm174N.m19kg5630N1.15
KF37DR71S458.60.37kw24rpm150N.m19kg5500N1.35
KF37DR71S449.790.37kw28rpm128N.m19kg5350N1.55
KF37DR71S4
44.460.37kw31rpm114N.m19kg5230N1.75
KF37DR71S437.970.37kw36rpm97N.m19kg5060N2.1
KF37DR71S435.570.37kw39rpm91N.m19kg4990N2.2
KF37DR71S429.960.37kw46rpm77N.m19kg4800N2.6
KF37DR71S4
28.830.37kw48rpm74N.m19kg4750N2.7
KF37DR71S424.990.37kw55rpm64N.m19kg4590N3.1
KF37DR71S423.360.37kw59rpm60N.m19kg4510N3.3
KF37DR71S420.190.37kw68rpm52N.m19kg4350N3.6
KF37DR71S4
17.150.37kw80rpm44N.m19kg4160N4.1
KF37DR71S415.310.37kw90rpm39N.m19kg4040N4.5
KF37DR71S413.080.37kw105rpm34N.m19kg3860N4.9
KF37DR71S412.140.37kw114rpm31N.m19kg3780N5.1
KF37DR71S4
10.490.37kw132rpm27N.m19kg3630N6
KF37DR71S48.910.37kw155rpm23N.m19kg3460N7
KF37DR71S47.96
0.37kw173rpm20N.m19kg3350N7.6
KF37DR71S46.8
0.37kw203rpm17N.m19kg3190N8.6
KF37DR71S4
6.370.37kw217rpm16N.m19kg3130N8.9
KF37DR71S45.360.37kw257rpm14N.m19kg2970N10

KF37DRS71S4減速機類型：

K..DR..底腳安裝斜齒輪—傘齒輪減速電機

KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機

KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機

KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機

KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機

KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

KA..DR..空心軸斜齒輪─傘齒輪減速電機

KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機

KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機

KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機

KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機


KF37DRS71S4減速機馬達安裝尺寸圖紙



KF37DRS71S4減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約

大功率減速電機應用案例展示：

關鍵詞:KF系列齒輪減速機與電機_大功率減速電機_大負載減速器_大負載減速機電機_大功率電機減速機_大功率電動機減速機_大負載電動機減速機一套生產廠家

KF系列減速機型號：KF37減速機,KF47減速機,KF57減速機,KF67減速機,KF77減速機,KF87減速機,KF97減速機,KF107減速機,KF127減速機,KF157減速機,KF167減速機,KF187減速機

KF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求



標簽:   旋轉6噸負載電機減速機 KF37DRS71S4 KF37DR71S4

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
KF37DRS71S4減速機樣本 點擊下載
KF37DRS71S4三維圖紙 點擊下載
