KF127RF77-Y0.75KW詳細信息
KF127RF77-Y0.75KW
關鍵詞：1.1KW伺服電機錐齒輪減速器_KF127RF77-Y0.75KW_KF127RF77-Y71M4
KF127RF77-Y0.75KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KF127RF77-Y0.75KW | 3311 | 0.75KW | 0.43r/min | 14500N.m | 432kg | 77000N | 0.90 |
| KF127RF77-Y0.75KW | 3009 | 0.75KW | 0.48r/min | 13100N.m | 432kg | 79100N | 1.00 |
| KF127RF77-Y0.75KW | 2607 | 0.75KW | 0.55r/min | 11200N.m | 432kg | 80100N | 1.15 |
| KF127RF77-Y0.75KW | 1926 | 0.75KW | 0.74r/min | 8650N.m | 432kg | 81200N | 1.50 |
| KF127RF77-Y0.75KW | 1757 | 0.75KW | 0.82r/min | 7880N.m | 432kg | 81500N | 1.65 |
| KF127RF77-Y0.75KW | 1541 | 0.75KW | 0.93r/min | 6880N.m | 432kg | 81800N | 1.90 |
| KF127RF77-Y0.75KW | 1342 | 0.75KW | 1.10r/min | 6020N.m | 432kg | 82100N | 2.20 |
| KF127RF77-Y0.75KW | 1177 | 0.75KW | 1.20r/min | 5250N.m | 432kg | 82200N | 2.50 |
| KF127RF77-Y0.75KW | 1025 | 0.75KW | 1.40r/min | 4600N.m | 432kg | 82400N | 2.80 |
| KF127RF77-Y0.75KW | 899 | 0.75KW | 1.60r/min | 4010N.m | 432kg | 82500N | 3.20 |
KF127RF77-Y71M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KF127RF77-Y71M4 | 7482 | 0.37KW | 0.18r/min | 16500N.m | 426.5kg | 72700N | 0.80 |
| KF127RF77-Y71M4 | 6565 | 0.37KW | 0.21r/min | 14500N.m | 426.5kg | 76900N | 0.90 |
| KF127RF77-Y71M4 | 5804 | 0.37KW | 0.24r/min | 12600N.m | 426.5kg | 79400N | 1.05 |
| KF127RF77-Y71M4 | 5027 | 0.37KW | 0.27r/min | 11000N.m | 426.5kg | 80200N | 1.20 |
| KF127RF77-Y71M4 | 4423 | 0.37KW | 0.31r/min | 9610N.m | 426.5kg | 80800N | 1.35 |
| KF127RF77-Y71M4 | 3889 | 0.37KW | 0.35r/min | 8410N.m | 426.5kg | 81300N | 1.55 |
| KF127RF77-Y71M4 | 3311 | 0.37KW | 0.42r/min | 7080N.m | 426.5kg | 81800N | 1.85 |
| KF127RF77-Y71M4 | 1926 | 0.37KW | 0.72r/min | 4280N.m | 426.5kg | 82400N | 3.00 |
| KF127RF77-Y71M4 | 1757 | 0.37KW | 0.79r/min | 3900N.m | 426.5kg | 82500N | 3.30 |
| KF127RF77-Y71M4 | 1541 | 0.37KW | 0.90r/min | 3390N.m | 426.5kg | 82600N | 3.80 |
KF127RF77-Y0.75KW減速機類型：
K127RF77-Y0.75KW底腳安裝斜齒輪—傘齒輪減速電機
KA127BRF77-Y0.75KW底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV127BRF77-Y0.75KW底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH127BRF77-Y0.75KW底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF127RF77-Y0.75KWB5法蘭安裝斜齒輪—傘齒輪減速電機
KAF127RF77-Y0.75KWB5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF127RF77-Y0.75KWB5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF127RF77-Y0.75KWB5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA127RF77-Y0.75KW空心軸斜齒輪─傘齒輪減速電機
KV127RF77-Y0.75KW花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH127RF77-Y0.75KW空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT127RF77-Y0.75KW空心軸安裝斜齒輪—傘齒輪減速電機
KAZ127RF77-Y0.75KWB14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ127RF77-Y0.75KWB14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ127RF77-Y0.75KWB14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

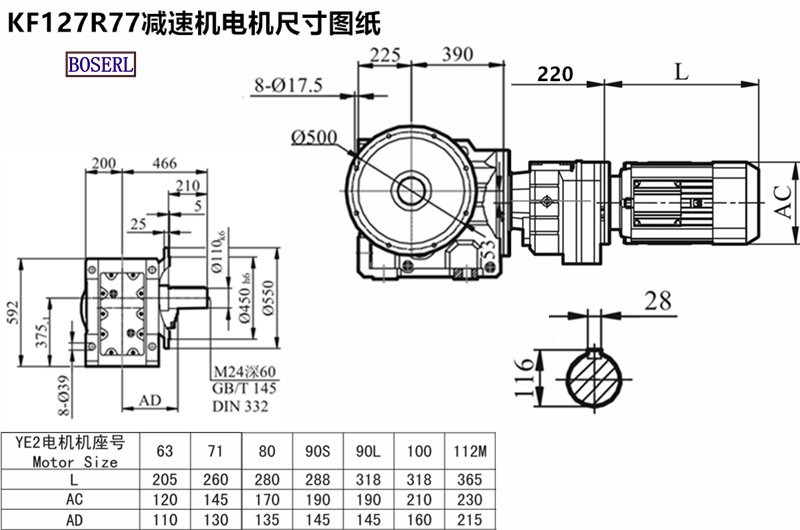

KF127RF77-Y0.75KW減速機馬達安裝尺寸圖紙
KF127RF77-Y0.75KW減速機電機生產廠家，看廠請?zhí)崆叭祛A(yù)約大功率減速電機
關鍵詞:KF系列齒輪減速機與電機_大功率減速電機_大負載減速器_大負載減速機電機_大功率電機減速機_大功率電動機減速機_大負載電動機減速機一套生產廠家
KF系列減速機型號：KF37減速機,KF47減速機,KF57減速機,KF67減速機,KF77減速機,KF87減速機,KF97減速機,KF107減速機,KF127減速機,KF157減速機,KF167減速機,KF187減速機
KF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 1.1KW伺服電機錐齒輪減速器 KF127RF77-Y0.75KW KF127RF77-Y71M4
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| KF127RF77Y0.75KW減速機樣本 |
|
| KF127RF77Y0.75KW減速機三維圖紙 |
|
